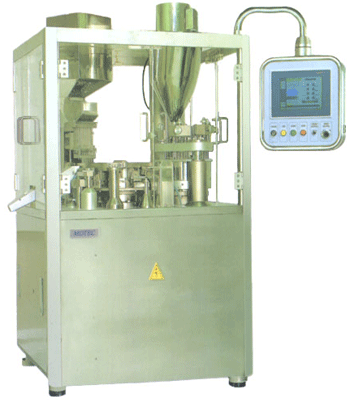

Аппарат
для автокапсуляции:
|
Аппарат
для автокапсуляции:
| |
MAC-45 |
MAC-100 |
| Output Capsule/Hour |
Max.45,000 |
Max.100,000 |
| Capsule Size(#) |
0-1-2-3-4(Option 00,5) |
| Standard Voltage |
220V/3PH 60Hz(380V/60Hz) |
| Rated Power |
1.5KW |
3.5KW |
| Dimension(W*D*H) |
807*996(1,395)*1,800 |
1,205*1,205(1,245)*1,940 |
| Net Weight |
900Kg |
2,000Kg |
|
|

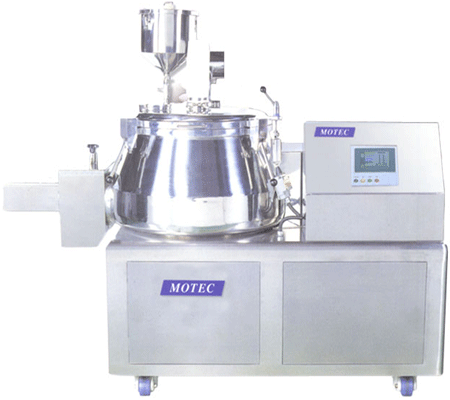

Высокоскоростной
миксер:
|
Высокоскоростной
миксер:
| |
SM-50 |
SM-100 |
SM-200 |
SM-300 |
| Full Cap'y
( l ) |
120 |
240 |
455 |
670 |
| Work Cap'y
( l ) |
50 |
100 |
200 |
300 |
| Agitator:
Drive Motor
Speed (RPM) |
7.5kw
3-220 |
11kw
3-120 |
15kw
3-120 |
22kw
3-105 |
| Chopper:
Drive Motor
Speed (RPM) |
3.7kw
100-3400 |
5.5kw
100-3400 |
7.5kw
100-3400 |
11kw
100-3400 |
| Dimension(W*D*H) |
100*680*1100 |
1550*900*1300 |
1900*1070*1600 |
2090*1120*1650 |
| Net Weight |
1500kg |
2000kg |
2500kg |
3000kg |
| |
SM-400 |
SM-500 |
SM-600 |
| Full Cap'y
( l ) |
850 |
1050 |
1280 |
| Work Cap'y
( l ) |
400 |
500 |
600 |
| Agitator:
Drive Motor
Speed (RPM) |
30kw
3-90 |
37kw
3-80 |
45kw
3-75 |
| Chopper:
Drive Motor
Speed (RPM) |
11kw
100-3400 |
11kw
100-3400 |
11kw
100-3400 |
| Dimension(W*D*H) |
2250*1300*1850 |
2400*1470*2320 |
2580*1650*2640 |
| Net Weight |
3800kg |
4500kg |
5500kg |
|
|

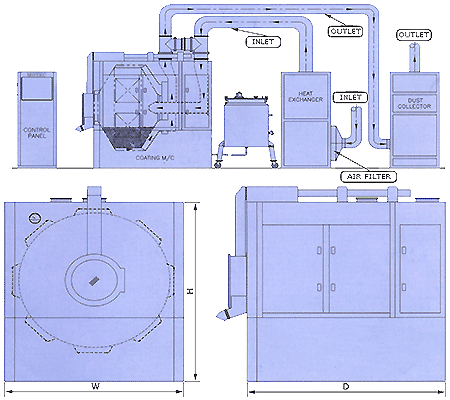

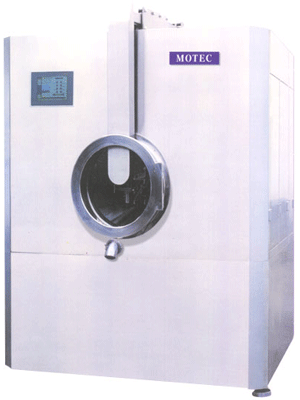

Аппарат
для автопокрытия: |
Аппарат
для автопокрытия:
| |
MOC-500 |
MOC-1000 |
MOC-1300 |
| Pan Dia (
mm ) |
500 |
1000 |
1300 |
| Blim Volume (
L) |
50 |
105 |
225 |
| Output Cap'y
( kg ) |
20-25 |
50-70 |
120-150 |
| Drive Motor (kw) |
0.75 |
1.5 |
2.2 |
| Pan Speed (RPN) |
1-20 |
1-16 |
1-16 |
| Dimension(W*D*H) |
100*1150*1600 |
1350*1520*1780 |
1550*1850*1900 |
| Air Volume:
Exhaust
Supply |
20
15 |
30
25 |
60
25 |
| |
MOC-1500 |
MOC-1700 |
MOC-2000 |
| Pan Dia (
mm ) |
1500 |
1700 |
2000 |
| Blim Volume (
L) |
350 |
550 |
900 |
| Output Cap'y
( kg ) |
200-230 |
320-380 |
500-650 |
| Drive Motor (kw) |
3.8 |
5.5 |
7.5 |
| Pan Speed (RPN) |
1-14 |
1-12 |
1-12 |
| Dimension(W*D*H) |
1780*1980*2000 |
1920*2250*2200 |
2100*2480*2400 |
| Air Volume:
Exhaust
Supply |
60
30 |
65
45 |
65
60 |
|
|
Полностью
автоматический ротационный
таблеточный пресс: |
|
Полностью
автоматический ротационный таблеточный пресс:
Технические характеристики
TMI-1100:
| |
TMI-1130 |
TMI-1136 |
TMI-1145 |
| Number of
Stations |
|
|
|
| Punch Type |
|
|
|
| Die
Plate Speed |
|
|
|
| Output/h |
|
|
|
| Max.
Compression Force |
|
|
|
| Max.
Pre-compression Force |
|
|
|
| Max.
Tablet Dia. |
|
|
|
| Max.
Tablet Thickness |
|
|
|
| Filling
Depth |
|
|
|
| Uppper
Punch Penetration
Depth |
|
|
|
| Pitch
Circle Dia. |
|
|
|
| Diameter of
Die |
|
|
|
| Height of
Die |
|
|
|
| Punch
Shank Dia. |
|
|
|
| Punch
Length |
|
|
|
Технические характеристики
TMI-2100:
| |
TMI-2133 |
TMI-2145 |
TMI-2149(EU19) |
| Number of
Stations |
|
|
|
| Die
Plate Speed |
|
|
|
| Output/h |
|
|
|
| Max.
Compression Force |
|
|
|
| Max.
Tablet Dia. |
|
|
|
| Filling
Depth |
|
|
|
| Uppper
Punch Penetration
Depth |
|
|
|
| Diameter of
Die |
|
|
|
| Punch
Shank Dia. |
|
|
|
| Upper
Punch Length |
|
|
|
| Lower
Punch Length |
|
|
|
|
|
|
